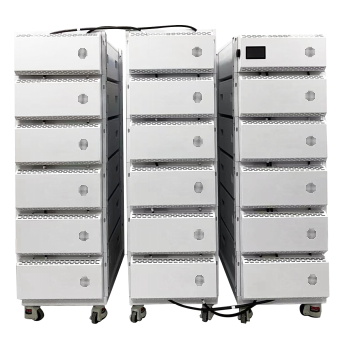

Random stacked high voltage 0.5C energy storage system (64kWh-272kWh)

Each unit of this product comes with a battery
box and a high-voltage box. The energy
storage adopts a “safe and reliable” design
concept. The components are either selfdeveloped or sourced from first-line suppliers.
This enables us to provide customers with safe
and reliable, affordable, high-quality, easy-to
-install and expand, simple and user-friendly
energy storage products. It makes the construction
of energy storage projects simpler, the usage
more concise, and the operation and maintenance
more straightforward.

分类:

HOME ENERGY STORAGE BATTERY

APPLICATION SYSTEM

PRODUCT PARAMETERS

Product ModeUBT-H64kWh
-D001-04
UBT-H128kWh
-D001-08
UBT-H192kWh
-D001-12
UBT-H273kWh
-D001-17
Number of battery
modules in series (optional)
4(Min)81217 (Max)
System rated voltage (V)204.8409.6614.4870.4
System operating voltage (V)192~227.2384~454.4576~681.6816~965.6
System energy (kWh)64.3128.6192.9273.3
Weight (kg)47294414162006
Module energy (Wh)16076
Module rated voltage (V)51.2
Module capacity (Ah)314
Charging and discharging currentCharging: 140A / Discharging: 160A
Operating temperature (℃)Charging: 0~55 / Discharging: -20~60
Status indicator lightGreen: Battery high-voltage power supply is on
Communication portCAN2.0
Humidity5% to 85% relative humidity
Altitude3000m
Exterior protection gradeIP20
Installation locationModule installation method
Storage temperature (°C)-30~60
Recommended discharge depth93%
Cycle life25±2℃,0.5C/0.5C,EOL70%≥8000
CertificationCE-EMC,UN38.3
Electromagnetic chemical typeLithium iron phosphate
