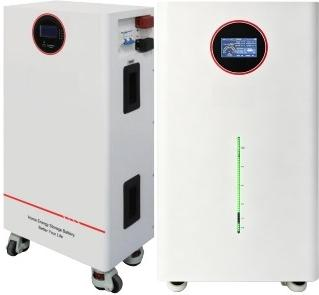

Roller-type energy storage battery

Roller-type energy storage batteries are a
kind of energy storage solution with inherent
mobility convenience. As the name suggests,
its most distinctive feature is that it is
equipped with rollers (usually casters) at the
bottom, which endows its powerful power
storage capacity with excellent mobility.

分类:

HOME ENERGY STORAGE BATTERY

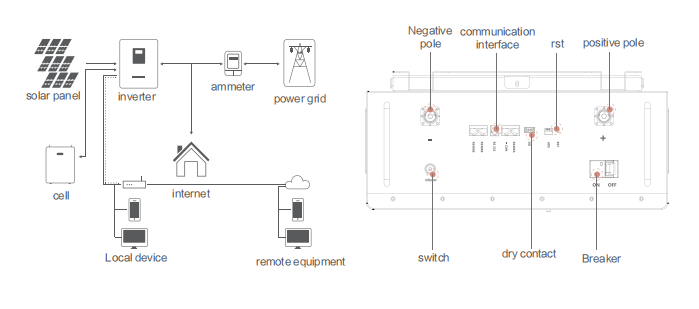

APPLICATION SYSTEM

PRODUCT PARAMETERS

Product ModelUBT-B15UBT-D15UBT-D16
Nominal Voltage (V)484851.2
Nominal Capacity (Ah)314314314
Energy (Wh)150721507216076
Dimension (mm)666×500×230800×440×262800×440×262
Weight (kg)118120125
Discharge Cut-off Voltage (V)37.537.540
Charge Cut-off Voltage (V)54.7554.7558.4
Communication PortRS485,RS232,CANRS485,RS232,CANRS485,RS232,CAN
Combination of battery cells15S1P15S1P16S1P
Working TemperatureCharging: 0~55℃;Discharge: -10~55℃
Design Life10+Years (25°C/77°F)10+Years (25°C/77°F)10+Years (25°C/77°F)
Cycle Life>8000, 25°C/77°F, 80%DOD
CertificatesCE/UN38.3/MSDSCE/UN38.3/MSDSCE/UN38.3/MSDS
Maximum Charging Current100A100A100A
Maximum Discharge Current200A200A200A
