Stacked all-in-one energy storage system

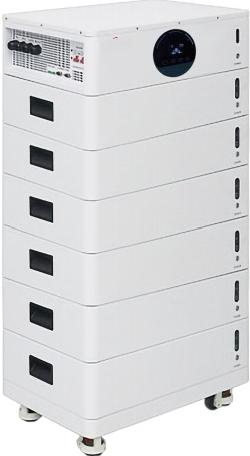

The Stacked Energy Storage All-in-One is a
modular device that integrates a
photovoltaic (PV) inverter, a DC charging
module, an energy storage converter (PCS),
an energy storage battery and an energy
management system (EMS). It enables
efficient, flexible and scalable energy
storage solutions.

Inquiry Now

分类： Stacked

描述
用户评价 (0)

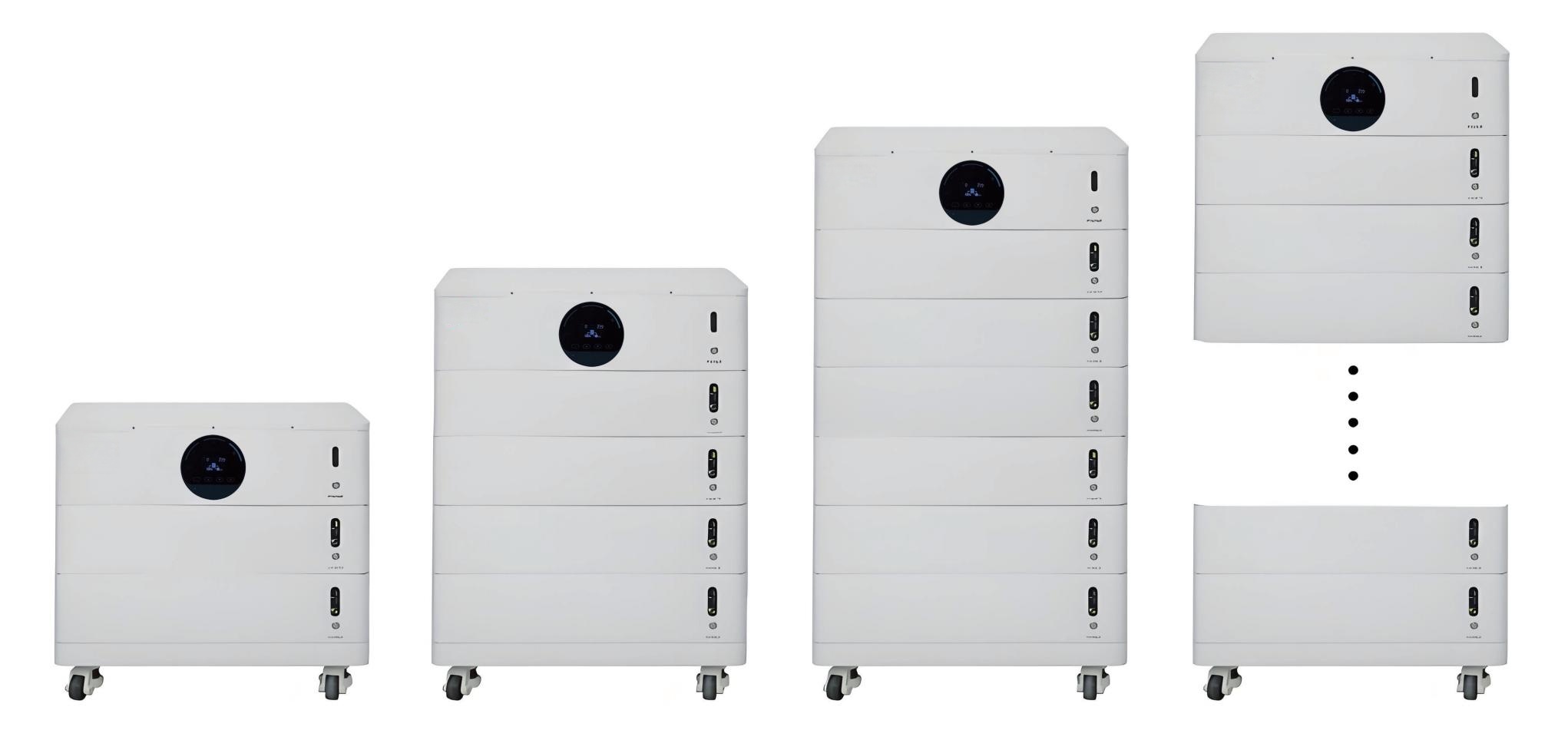

MODULAR FREE STACKING,EASY TO

USE,A VARIETY OF CHOICES

PRODUCT PARAMETERS

Product Mode	3-module	4-module	5-module	6-module	7-module
System parameter
Product specification	10kWh +6kW	15kWh +6kW/12kW	20kWh +6kW/12kW	25kWh +6kW/12kW	30kWh +6kW/12kW
Weight (kg)	100	145	190	235	280
Dimension (mm)	735×425 ×590	735×425 ×740	735×425 ×890	735×425 ×1040	735×425 ×1190
Energy	10kWh	15kWh	20kWh	25kWh	30kWh
Inverter power	6kW	6kW/12kW	6kW/12kW	6kW/12kW	6kW/12kW
Inverter parameters
AC mode
Rated Input Voltage			220~230 Vac
Input Voltage Range			(90Vac~280Vac)±2%
Frequency range			47±0.3Hz~55±0.3Hz(50Hz)；57±0.3Hz~65±0.3Hz(60Hz)；
Maximum efficiency			>95%
Max bypass overload current			50A/90A
Inverting mode
Output Voltage Waveform			Pure sine wave
Rated Output Power			6kW/12kW
Rated Output Voltage (Vac)			220/230/240V±5%
Output Frequency Range (Hz)			50Hz±0.3Hz/60Hz±0.3Hz
Maximum Efficiency			>92%
PV input (DC)
Maximum DC voltage			500Vdc
MPPT voltage range			80~450Vdc
Maximum PV Input Current			27A
