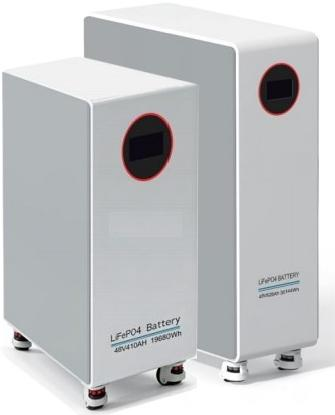

Vertical Touch Screen Energy Storage Battery

Vertical Touch Screen Energy Storage Battery
are a kind of energy storage solution with
inherent mobility convenience. As the name
suggests, its most distinctive feature is that it
is equipped with rollers (usually casters) at
the bottom, which endows its powerful power
storage capacity with excellent mobility.

HOME ENERGY STORAGE BATTERY

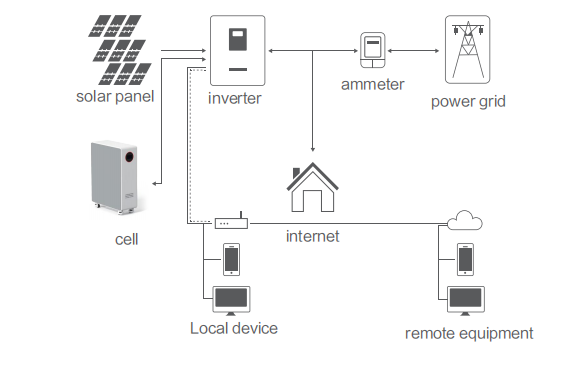

APPLICATION SYSTEM

PRODUCT PARAMETERS

Product Model	UBT-D20KWH	UBT-D30KWH
Combination method	15S2P	15S2P
Rated capacity/power	410Ah/19.68KWh	628Ah/30.144KWh
Working Voltage	48V	48V
Discharge end voltage	37.5V	37.5V
charging voltage	55V	54.75V
Internal impedance	≤50mΩ	≤50mΩ
standard charging	200A	200A
Maximum continuous charging current	200A	200A
standard discharge	200A	200A
Maximum continuous discharge current	200A	200A
Working temperature range	-10°C~65°C	-20°C~65°C
Storage temperature range	-20~45°C	-20~45°C
size	750304710mm	950750325mm
weight	162kg	220kg
