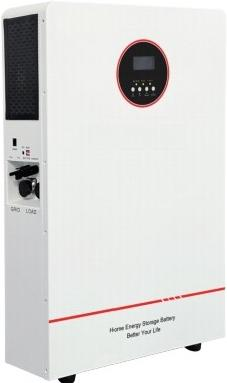

Floor standing all-in-one energy storage system

The Floor standing all-in-one energy storage
system is an integrated energy solution that
highly integrates energy storage batteries,
inverters and intelligent control systems in a
vertical cabinet. It simplifies complexity,
bidding farewell to the complex installation
of scattered equipment in the past, and
provides you with a “one-stop” clean energy
management and usage experience.

分类:

HOME ENERGY STORAGE BATTERY

APPLICATION SYSTEM

PRODUCT PARAMETERS



Product ModelUBT-N2HT5-P5UBT-N2HT5-P15UBT-N2HT11-P15
System parameter
Product Specification5kW+5kWh5kW+15kWh11kW+15kWh
Battery Voltage51.2V48V48V
Battery Capacity100Ah314Ah314Ah
Energy5.12kWh15.07kWh15.07kWh
Inverter Power5kW5kW11kW
Dimension(mm)750×480×151880×580×2341030×580×234
Weight57kg120kg135kg
Maximum Charge Current100A100A157A
Maximum Discharge Current100A100A250A
Inverter parameters
AC mode
Rated input voltage220V/230V220V/230V220V/230V
Input voltage range(170Vac~280Vac)±2%(170Vac~280Vac)±2%(170Vac~280Vac)±2%
Frequency50Hz/60Hz50Hz/60Hz50Hz/60Hz
Efficiency95%95%95%
Maximum bypass overload current40A40A40A
Inverting mode
Output WaveformPure sine wavePure sine wavePure sine wave
Rated Output Power5kW5kW11kW
Power factor111
Rated Output Voltage220/230/240V±5%220/230/240V±5%220/230/240V±5%
Output Frequency50±0.3Hz/60±0.3Hz50±0.3Hz/60±0.3Hz50±0.3Hz/60±0.3Hz
Efficiency92%92%92%
Solar charge
Maximum PV open circuit voltage500Vdc500Vdc500Vdc
PV operating voltage range PV60~500Vdc60~500Vdc60~500Vdc
Maximum PV input current20A20A20A
