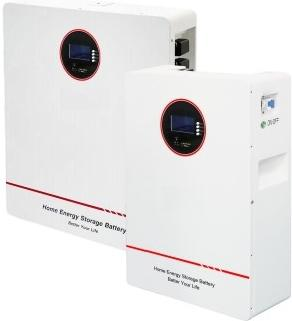

Floor standing & wall mounted energy storage battery

Floor standing & wall mounted energy storage battery

Floor standing & wall mounted energy
storage battery: Flexible and efficient space
energy managers, they are exquisitely
designed energy storage solutions
specifically tailored for optimizing space
utilization. It offers two convenient
installation methods

Inquiry Now
分类：

HOME ENERGY STORAGE BATTERY

APPLICATION  SYSTEM

PRODUCT PARAMETERS

Product ModelUBT-D02-B01UBT-D05-B02UBT-D05-B04UBT-D10-L01
Nominal Voltage (V)25.651.225.651.2
Nominal Capacity (Ah)100100200200
Energy (Wh)25605120512010240
Dimension (mm)H380xW327
×D133.5		H600xW380
×D145		H600×W380
×D145		H690×W580
×D150
Weight (kg)24454590
Discharge Cut-off Voltage (V)20402040
Charge Cut-off Voltage (V)29.258.429.258.4
Combination of battery cells8 S1P16S1P8S2P16S2P
Maximum Charge/Discharge Current100A100A100A200A
Communication PortRS485,RS232,CAN
Working TemperatureCharging: 0~55℃；Discharge: -10~55℃
Design life10+Years (25°C/77°F)
Cycle Life>6000, 25°C/77°F, 80%DOD
CertificationCE/UN38.3/MSDS
