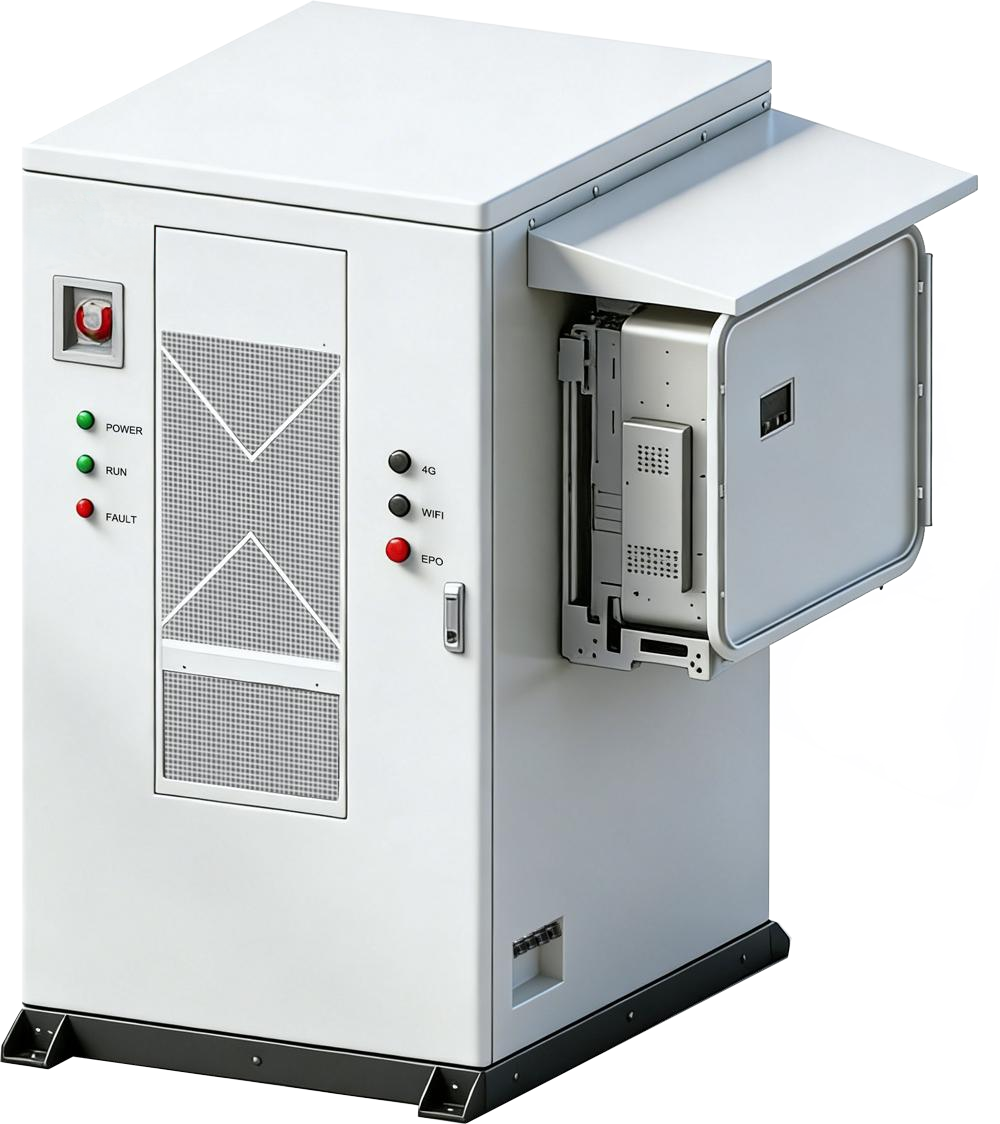

Hybrid C&I Energy Storage Outdoor AirCooled Cabinet

PRODUCT PARAMETERS

Product Model	UBT-180K-F	UBT-200K-F	UBT-221K-F U	UBT-241K-F	UBT-261K-F	备注
Cell Type			LFP-3.2V-314Ah
System nominal capacity	180kWh	200kWh	221kWh	241kWh	261kWh	Optional accessories
Voltage range	504-648Vdc	560-720Vdc	616-792Vdc	672-864Vdc	728-936Vdc
Rated charging/ discharging current			160A
Cell configuration	1P20S*9	1P20S*10	1P20S*11	1P20S*12	1P20S*13
Cycle life			>8000Time(25+2°C, 0.5C, EOL≥80%)
System parameters
Weight	1600kg	1700kg	1800kg	1900kg	2000kg
Cabinet dimensions			730W1345D2010H			Excluding PCS
Maximum efficiency			≥94%（DC side，25±2℃，0.5C）
Air conditioning power			2kW(Refrigeration)，1kW(Heating)
Working environment temperature			Discharge：-15~50℃；Charge：0~50℃
Working environment humidity			5~95%(No condensation)
Protection level			C3
Cooling method			Smart Air Cooling
Noise			≤65dB
Altitude			≤2000m（The above amount needs to be reduced）
Firefighting			Aerosol
Communication			Ethernet、WIFI、4G
Certification			IEC62619，UN38.3
Matching inverter			Solis/Deye/SOLINTEG/GoodWe/Megarevo
