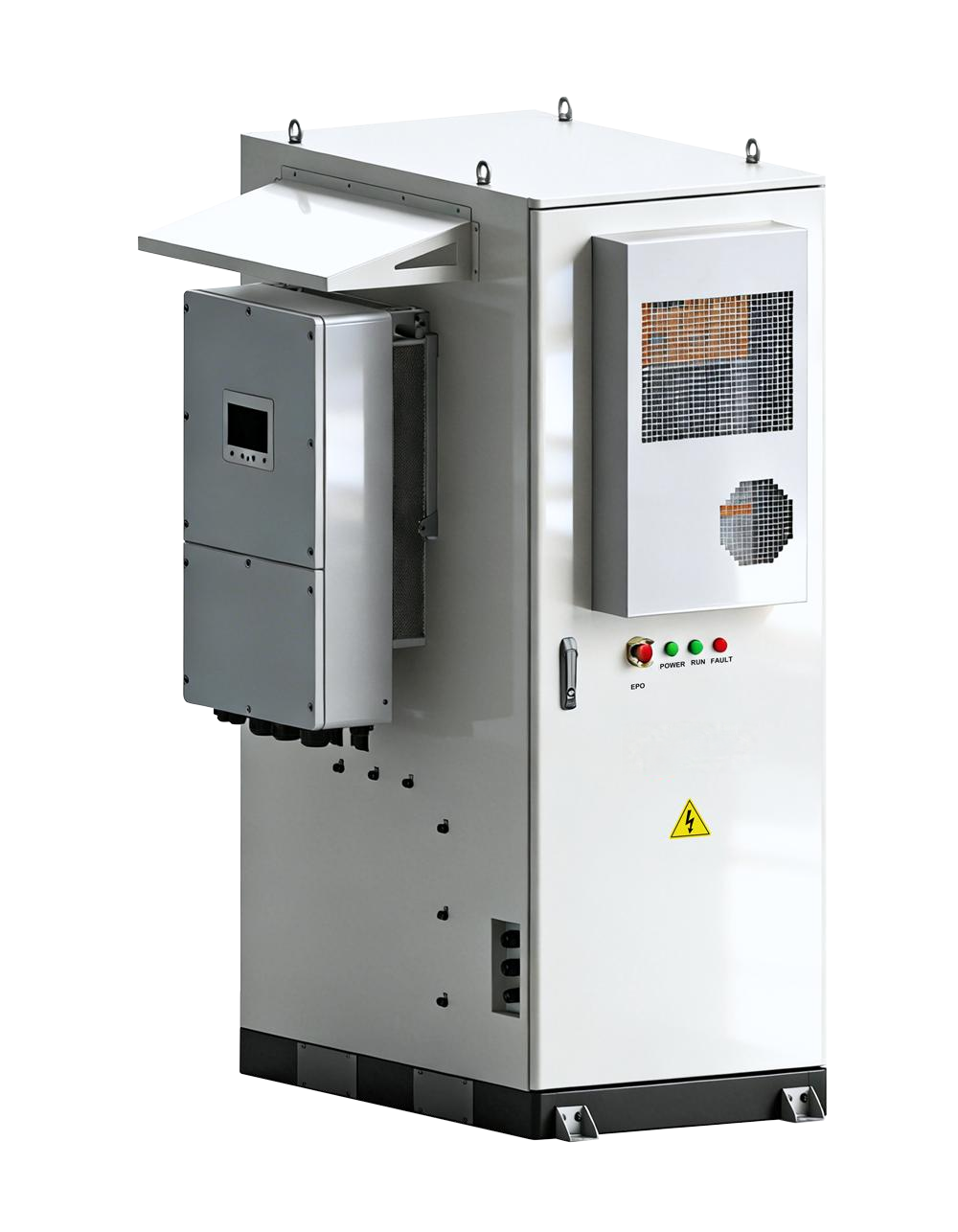

Hybrid C&I Energy Storage Outdoor AirCooled Cabinet - 120kWh

Hybrid C&I Energy Storage Outdoor AirCooled Cabinet – 120kWh

The energy storage system is an industrial
and commercial distributed energy storage
power supply, the system uses intelligent
software for automatic calculation of power
generation and consumption, and the
excess power will be automatically
deposited into the lithium-ion battery
pack, the system has high capacity,
long life and high safety.

Inquiry Now
分类：

PRODUCT PARAMETERS

Product ModeUBT-100K-FUBT-120K-F备注
Cell TypeLFP-3.2V-314Ah
System nominal capacity100kWh120kWhOptional
accessories
Voltage range280-360Vdc336-432Vdc
Rated charging/discharging current0.4C
Cell configuration1P20S*51P20S*6
Cycle life>8000Time(25+2°C, 0.5C, EOL≥80%)
System parameters
Weight1270kg1400kg
Cabinet dimensions730W*1345D*2010HExcluding PCS
Maximum efficiency≥94%（DC side，25±2℃，0.5C）
Air conditioning power2kW(Refrigeration)，1kW(Heating)
Working environment temperatureDischarge：-15~50℃；Charge：0~50℃
Working environment humidity5~95%(No condensation)
Protection levelIP55
Corrosion resistance gradeC3
Cooling methodSmart Air Cooling
Noise≤65dB
Altitude≤2000m（The above amount needs to be reduced）
FirefightingAerosol
CommunicationEthernet、WIFI、4G
CertificationIEC62619，UN38.3
Matching inverterSolis/Deye/SOLINTEG/GoodWe/Megarevo
