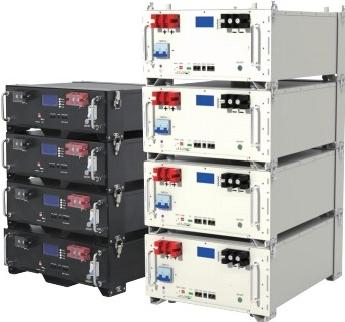

Rack-mounted energy storage battery

Rack-mounted energy storage battery

Portable rack-mounted energy storage
batteries, with high energy density,
fashionable appearance, easy installation
and expansion, are widely used in
telecommunication base stations,
commercial energy storage for small
companies, UPS, and household
photovoltaic energy storage systems

Inquiry Now

分类： Rack

描述
用户评价 (0)

HOME ENERGY STORAGE BATTERY

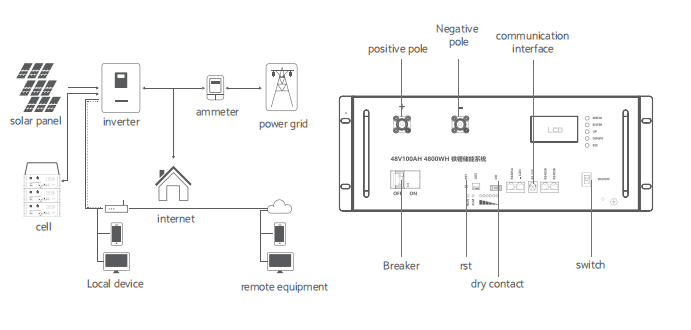

APPLICATION SYSTEM

PRODUCT PARAMETERS

Product Model	UBT-D05-U01	UBT-D05-U02	UBT-D10-U01
Nominal voltage (V)	51.2	25.6	51.2
Nominal Capacity (Ah)	100	200	205
Energy (Wh)	5120	5120	10496
Dimension (mm)	L420×W482×H133	L420×W482×H133	L650×W483×H222
Weight (kg)	50	50	100
Discharge cut-off voltage (V)	40	20	40
Charge Cut-off Voltage (V)	58.4	29.2	58.4
Communication Port	RS485,RS232,CAN	RS485,RS232,CAN	RS485,RS232,CAN
Combination of battery cells	16S1P	8S2P	16S1P
Working Temperature		Charging: 0~55℃；Discharge: -10~55℃
Design life	10+Years (25°C/77°F)	10+Years (25°C/77°F)	10+Years (25°C/77°F)
Cycle Life	>6000, 25°C/77°F, 80%DOD	>6000, 25°C/77°F, 80%DOD	>8000, 25°C/77°F, 80%DOD
Certification	CE/UN38.3/MSDS	CE/UN38.3/MSDS	CE/UN38.3/MSDS
Maximum Charge/Discharge Current	100A	100A	200A
