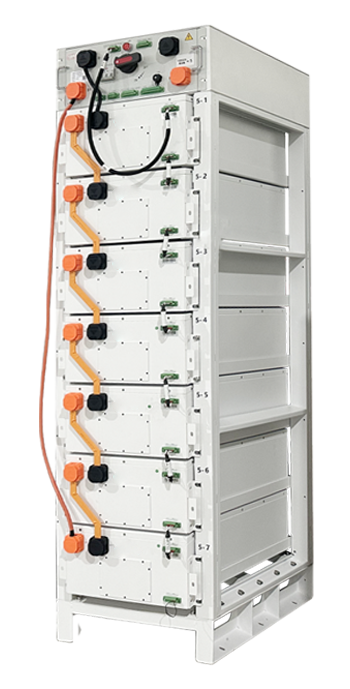

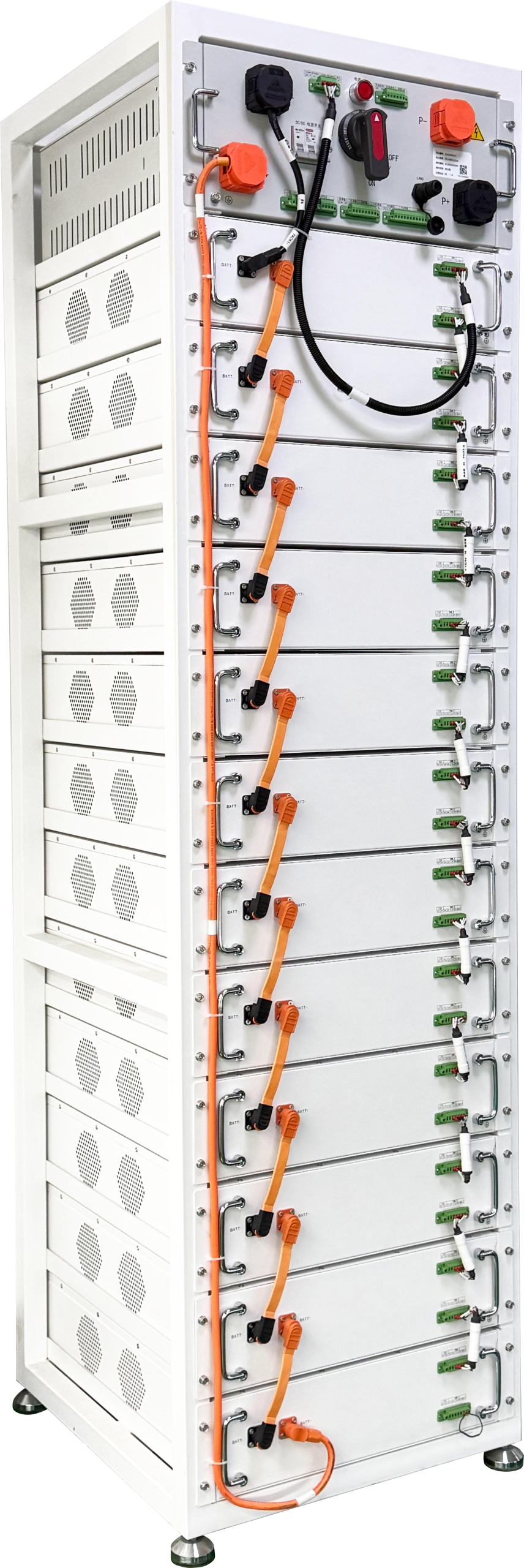

Rack-mounted high-voltage energy storage system

The Rack-mounted high-voltage energy
storage system is a standardized,
integrated, and high-voltage platform
energy storage solution specially designed
for scenarios such as industrial and
commercial energy storage, data centers,
storage system
communication base stations, and microgrids.

Inquiry Now

分类： Rack

描述
用户评价 (0)

HOME ENERGY STORAGE BATTERY

APPLICATION SYSTEM

Product Model	UBT-60KPNAN	UBT-100KPNAN
System nominal capacity	61.44kWh	100.3kWh
Battery cluster grouping method	1P12S	1P7S
Dc voltage range	480~691.2	280-403.2V
System efficiency	≥85%	≥85%
Rated charge/discharge current	0.5C	0.5C
Storage temperature range (℃)	-30℃~60℃	-30℃~60℃
Allowable operating temperature range	Discharge：-15~50℃； Charging：0~55℃	Discharge：-15~50℃； Charging：0~55℃
Optimal operating temperature range	25±2℃	25±2℃
Number of system cycles	≥6,000 times	≥8,000 times
Altitude	≤2000m	≤2000m
Cabinet size	574×600×2040mm	562×866×2080mm
level of protection	IP20	IP20
Anti-corrosion grade	Not lower than C3	Not lower than C3
System design life	≥10 Years	≥10 Years
External electrical interface	Route 1	Route 1
