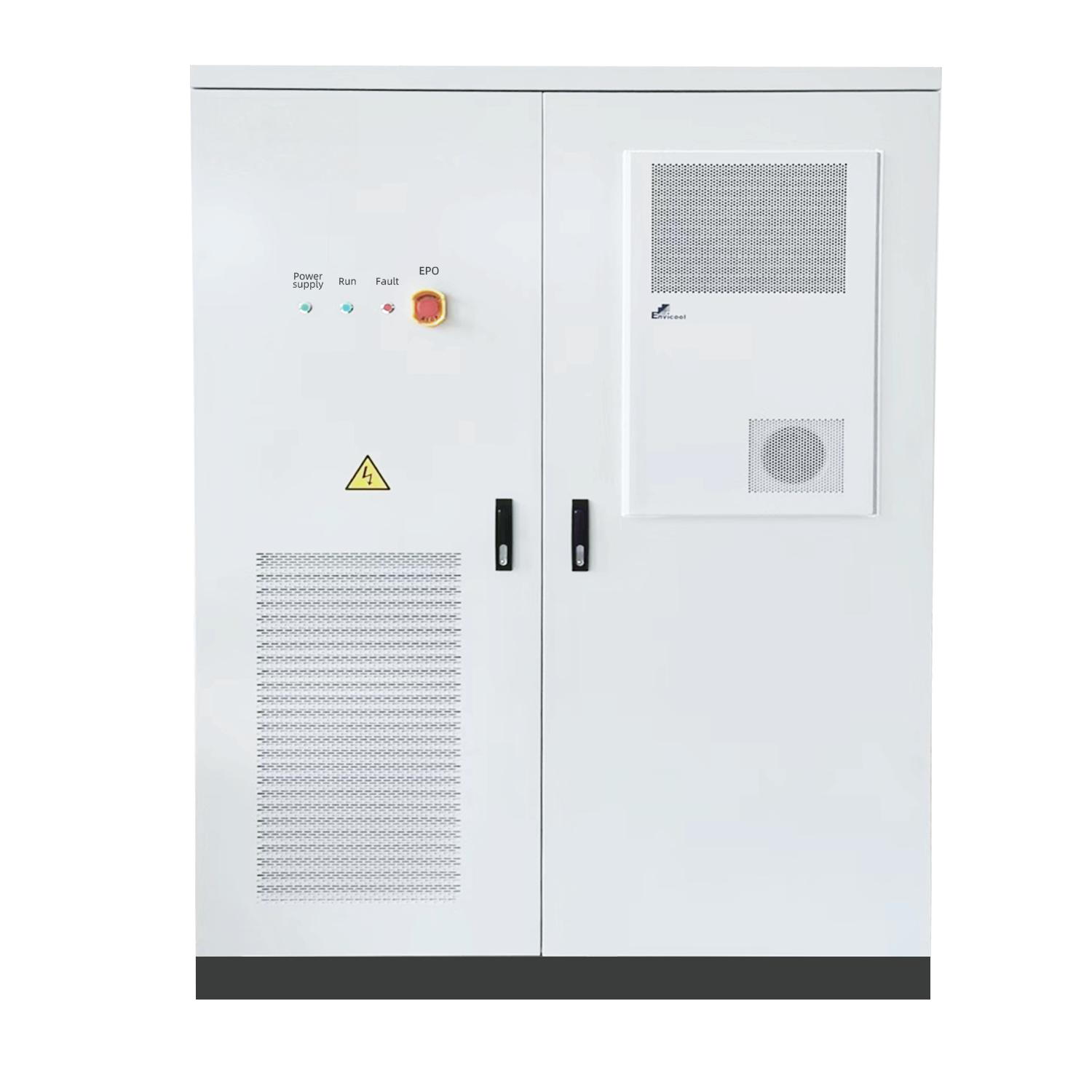

Industrial and commercial ESS -100kWh

Industrial and commercial ESS -100kWh

The energy storage system is an industrial
and commercial distributed energy storage power supply, the system uses intelligent
software for automatic calculation of power generation and consumption, and the
excess power will be automatically
deposited into the lithium-ion battery
pack, the system has high capacity,
long life and high safety.

Inquiry Now
分类：

PRODUCT PARAMETERS

Product ModelUBT-100KPFBB
Battery cabinet parameters
Battery Cabinet Dimensions1450×1200×2050mm
Weight1500kg
Storage Temperature Range-30℃~60℃
Rated charge/discharge ratio0.5C/25℃
Altitude≤2000m
Nominal Capacity100.3kWh
System efficiency≥85%
Protection RatingIP54
Battery pack parameters
Battery size779×420×230mm
Module Formation1P16S
Battery Pack Specifications51.2V 280Ah
Rated charge/discharge ratio0.5C/25°C
Charging Temperature Range0℃~50℃
Discharge Temperature Range-15℃~50℃
Cooling MethodIntelligent air cooling
Communication modeCAN
Single Cluster Configuration Information
Grouping method1P7S
Slave control BMU16 Strings (7PCS)
High voltage control boxBCU Master Control (1PCS)
Protection modeFuses, Contactors, Circuit Breakers
Rated charge/discharge current140A
PCS Energy Storage Converter Technical Data Sheet
Ac parameters
Output power50kW
Rated Current80A
Rated voltage400V/230V
Grid-side voltage rangeAC400V±(-20%~15%)
Frequency range50/60Hz
DC side parameters
Rated voltage range350V~850V
Maximum input current160A
PV parameters
Maximum Power38.4kW+38.4kW
MPPT voltage range250V~800V
Maximum Input Current64A+64A
