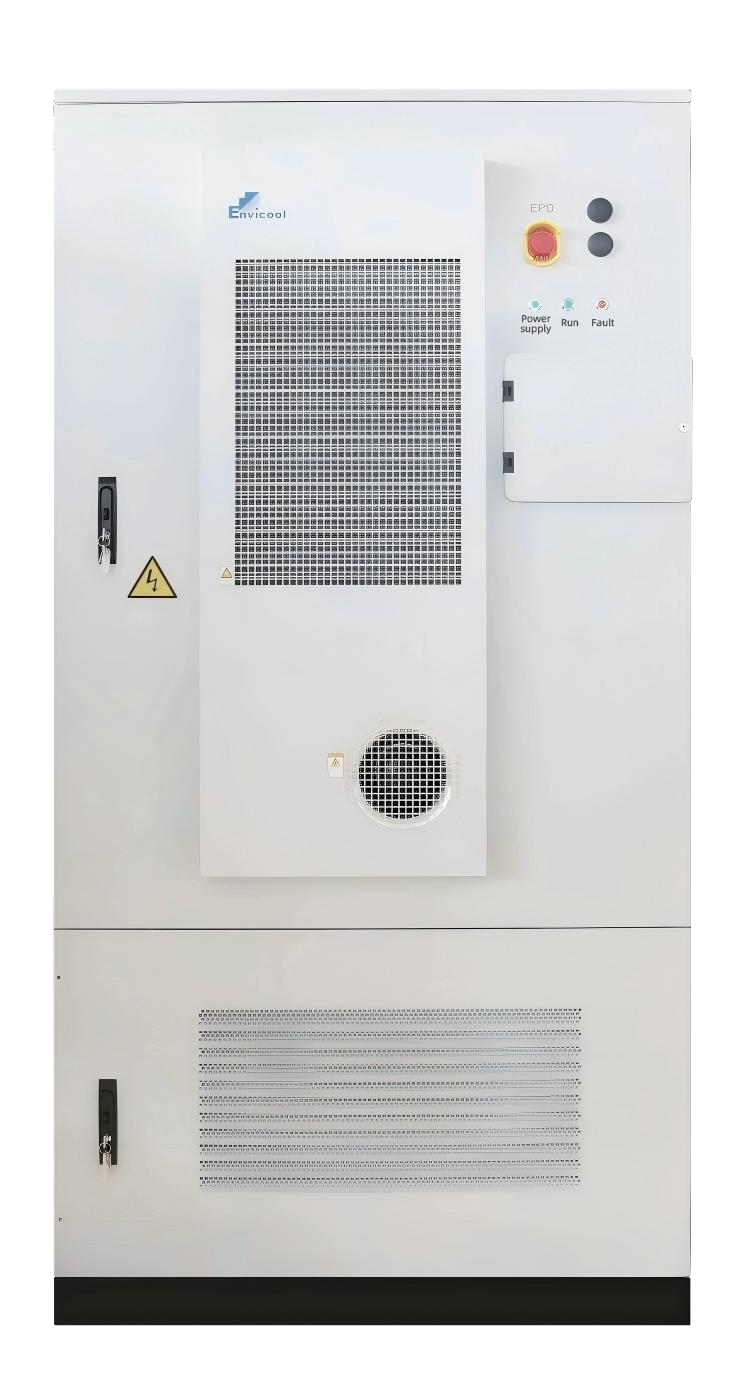

Industrial and commercial ESS -160kWh

Industrial and commercial ESS -160kWh

The energy storage system is an industrial
and commercial distributed energy storage
power supply, the system uses intelligent
software for automatic calculation of power
generation and consumption, and the
excess power will be automatically
deposited into the lithium-ion battery
pack, the system has high capacity,
long life and high safety.

Inquiry Now
分类：

PRODUCT PARAMETERS

Product ModelUBT-160KPFAN
Battery cabinet parameters
Battery Cabinet Dimensions1148×2300×1200mm
Storage Temperature Range-30℃~60℃
Rated charge/discharge ratio0.5C/25℃
Altitude≤2000m
Nominal Capacity160.768kWh
Cooling Modeair-cooling
System efficiency≥85%
Protection GradeIP54
Battery pack parameters
Battery size779×420×2300mm
Module Formation1P16S
Battery Pack Specifications51.2V 314Ah
Rated charge/discharge ratio0.5C/25°C
Charging Temperature Range0℃~50℃
Discharge Temperature Range-15℃~50℃
Cooling MethodIntelligent air cooling
Communication modeCAN
Single Cluster Configuration Information
Grouping method1P10S
Slave control BMU16 Strings（10PCS）
High voltage control boxBCU Master Control（1PCS）
Protection modeFuses, Contactors, Circuit Breakers
Rated charge/discharge current157A
PCS Energy Storage Converter Technical Data Sheet (PWS1-30K)
Ac parameters
Output power60kW
Rated Current96A
Rated voltage400V/230V
Frequency range50/60Hz
MPPT parameters (optional)
Rated voltage range410V~850V
Maximum input current150A
PV parameters
Maximum Power38.4kW+38.4kW
MPPT voltage range250V~800V
Maximum Input Current64A+64A
