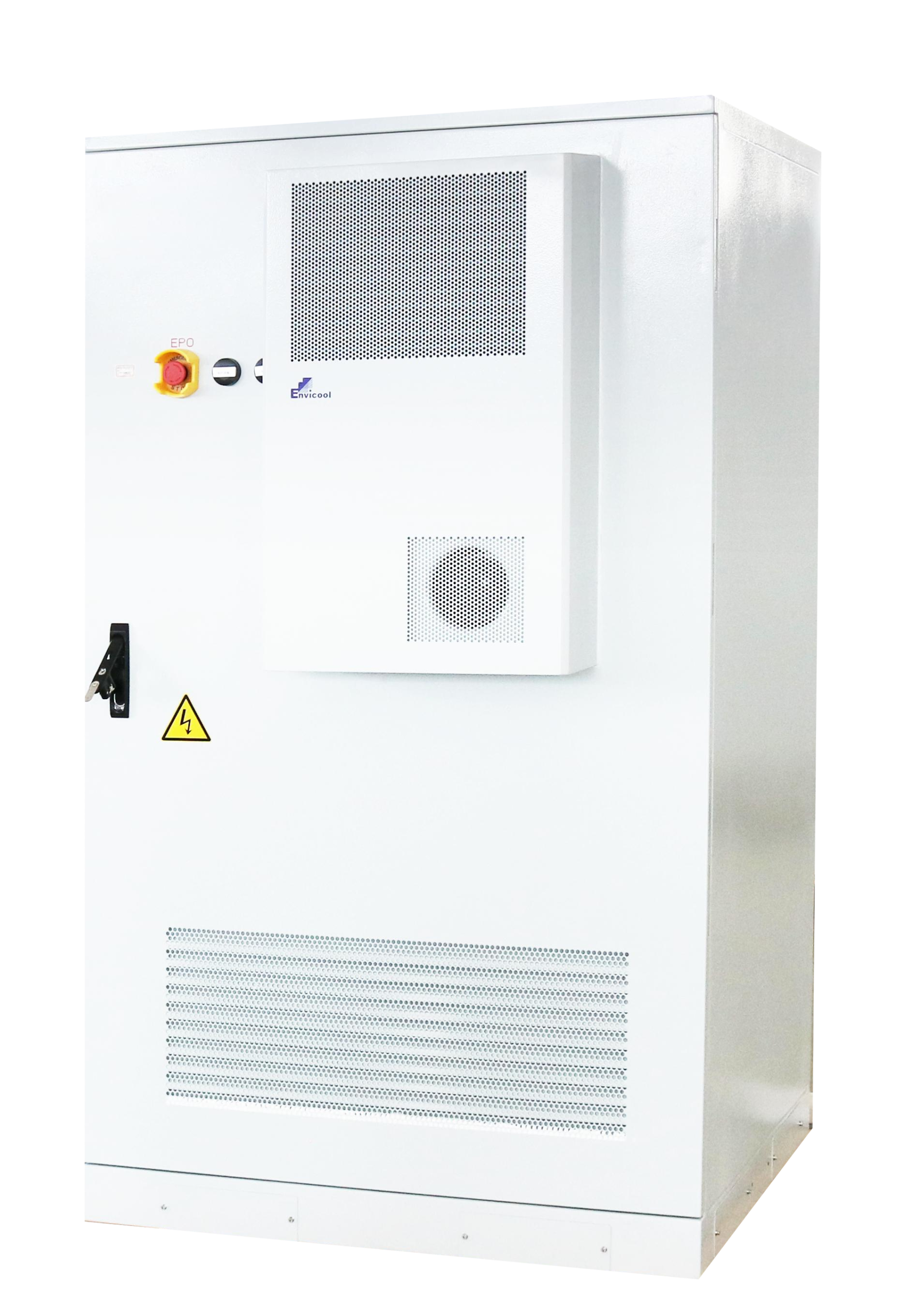

Industrial and commercial ESS -60kWh

Industrial and commercial ESS -60kWh

The energy storage system is an industrial
and commercial distributed energy storage power supply, the system uses intelligent
software for automatic calculation of power generation and consumption, and the
excess power will be automatically
deposited into the lithium-ion battery
pack, the system has high capacity,
long life and high safety.

Inquiry Now
分类：

PRODUCT PARAMETERS

Product ModelUBT-60KPFBB
Battery cabinet parameters
Battery Cabinet Dimensions1068×1035×1850mm
Weight950kg
Storage Temperature Range-30℃~60℃
Rated charge/discharge ratio0.5C/25℃
Altitude≤2000m
Nominal Capacity61.44kWh
System efficiency≥85%
Protection RatingIP54
Battery pack parameters
Battery size420×155×570mm
Module Formation1P16S
Battery Pack Specifications51.2V 100Ah
Rated charge/discharge ratio0.5C/25°C
Charging Temperature Range0℃~50℃
Discharge Temperature Range-15℃~50℃
Cooling MethodIntelligent air cooling
Communication modeCAN
Single Cluster Configuration Information
Grouping method1P12S
Slave control BMU16 Strings (12PCS)
High voltage control boxBCU Master Control (1PCS)
Protection modeFuses, Contactors, Circuit Breakers
Rated charge/discharge current50A
PCS Energy Storage Converter Technical Data Sheet
Ac parameters
Output power30kW
Rated Current40A
Rated voltage400V/230V
Grid-side voltage rangeAC400V±(-20%~15%)
Frequency range50/60Hz
DC side parameters
Rated voltage range320V~850V
Maximum input current100A
PV parameters
Maximum Power19.2kW+19.2kW
MPPT voltage range250V~800V
Maximum Input Current32A+32A
