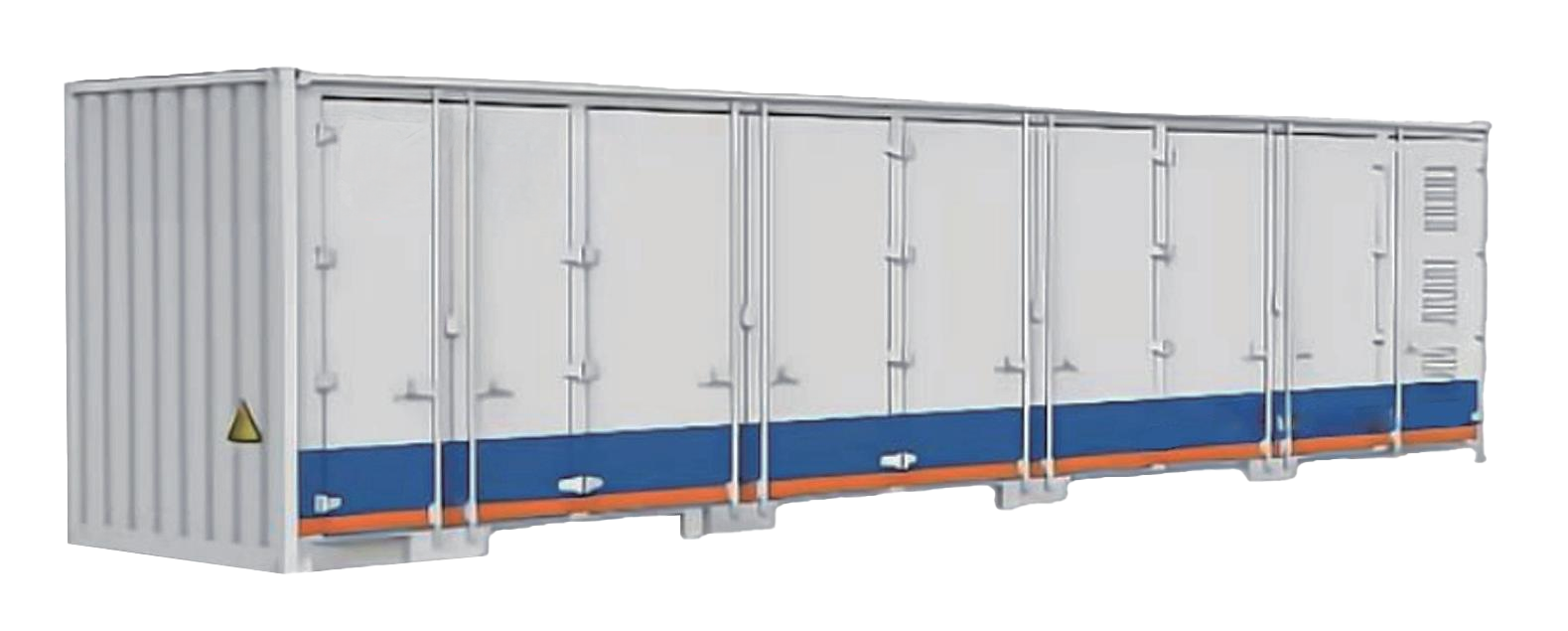

Industrial and commercial ESS -40-foot container

Containerised energy storage systems help
to use and manage energy more efficiently,
reduce electricity costs, and can be used in
a variety of scenarios, such as peak and
valley arbitrage for power users, grid
frequency regulation and peak shifting,
improving the consumption of new energy
sources, and improving the stability of
power supply from the grid.

PRODUCT PARAMETERS

Product Model2560kWh 40ft Cabinet5218kWh 40ft Cabinet
power1250KW2500KW
capacity2560kWh5218kWh
Nominal voltage768V1331.2V
level of protectionIP54IP54
operating temperature-30~50℃-30~50℃
Altitude<4000m<4000m
Dimension(W*D*H)mm12192x2438x289612192x2438x2896
cooling systemIndustrial Air Conditioning/air-coolingliquid-cooling
fire protection systemGas firefighting (Heptafluoropropane)Gas firefighting (Heptafluoropropane)
Fire test<2h<2h
Wind load<0.6kN/m3<0.6kN/m3
Seismic level< Level 10< Level 10
lacquerZinc-rich primer surface + fluorocarbon topcoat ≥100um
