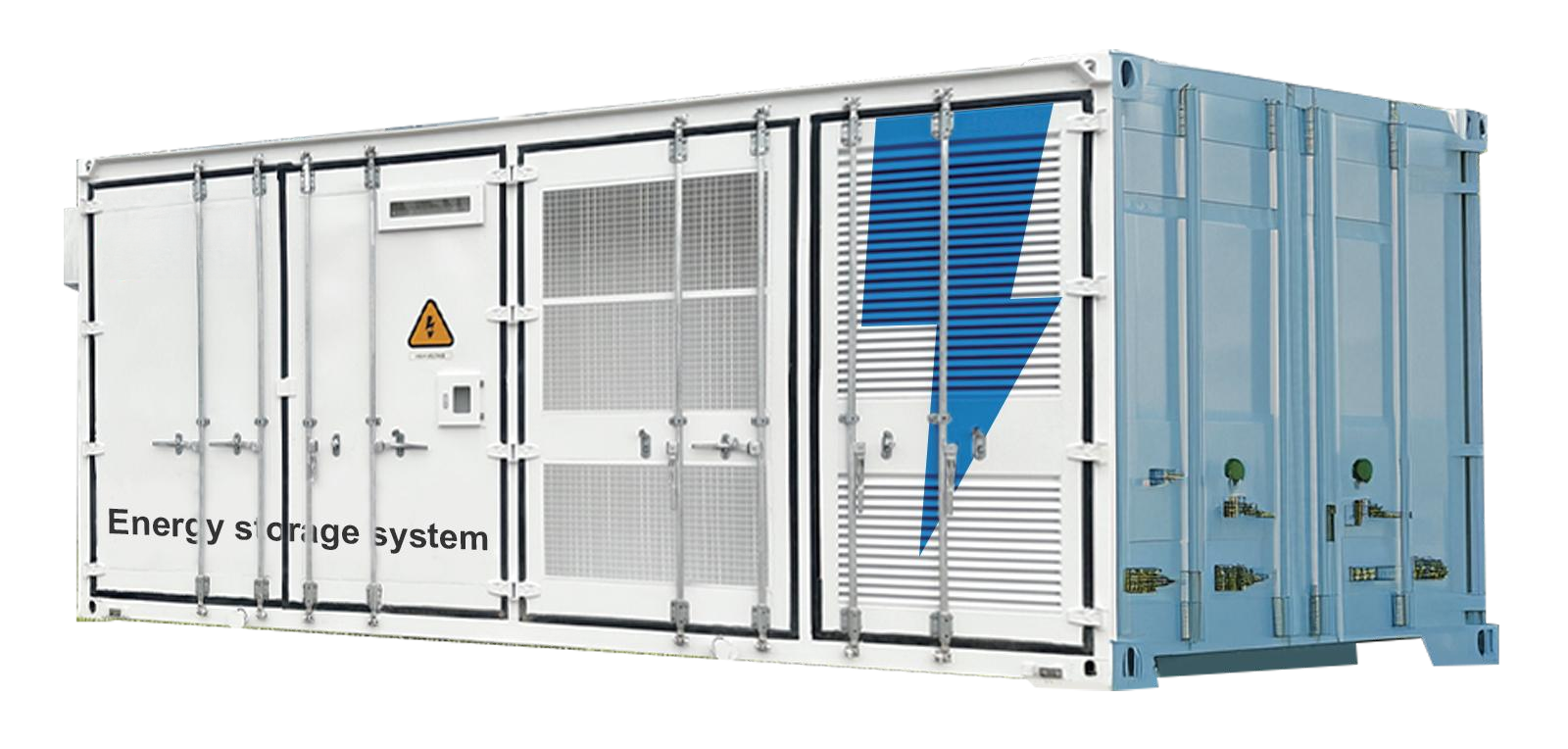

Industrial and commercial ESS -20-foot container

Containerised energy storage systems help
to use and manage energy more efficiently,
reduce electricity costs, and can be used in
a variety of scenarios, such as peak and
valley arbitrage for power users, grid
frequency regulation and peak shifting,
improving the consumption of new energy
sources, and improving the stability of
power supply from the grid.

PRODUCT PARAMETERS

Product Mode1290kWh 20ft Cabinet3440kWh 20ft Cabinet
power600KW1725KW
capacity1290kWh3440kWh
Nominal voltage768V1228.8V
level of protectionIP54IP54
Operating temperature-30~50℃-30~50℃
Altitude<4000m<4000m
Dimension(W*D*H)mm6058x2438x28966058x2438x2896
cooling systemIndustrial Air Conditioning/air-coolingliquid-cooling
fire protection systemGas firefighting (Heptafluoropropane)Gas firefighting (Heptafluoropropane)
Fire test<2h<2h
Wind load<0.6kN/m3<0.6kN/m3
Seismic level
lacquerZinc-rich primer surface + fluorocarbon topcoat ≥100um
