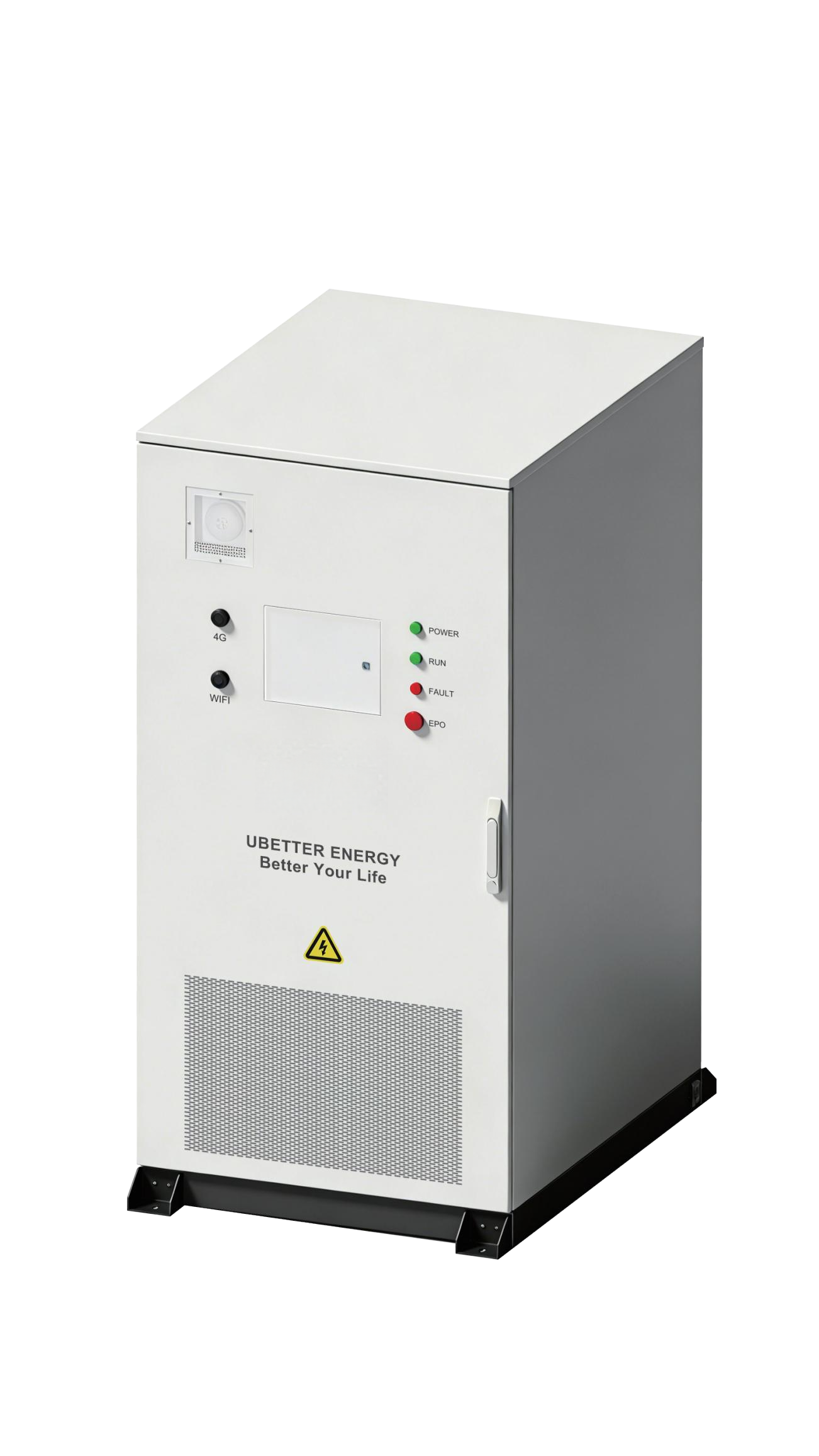

Industrial and commercial ESS -261kWh(Liquid Cooling)

The energy storage system is an industrial
and commercial distributed energy storage
power supply, the system uses intelligent
software for automatic calculation of power
generation and consumption, and the
excess power will be automatically
deposited into the lithium-ion battery
pack, the system has high capacity,
long life and high safety.

PRODUCT PARAMETERS

Product Model	UBT-261K-YNB
Battery parameters
Cell type	LFP-3.2V-314Ah
System nominal capacity	261.248kWh
Voltage range	728-936Vdc
Rated charge/discharge current	0.5C
Battery grouping method	1P52S*5
Cycle life	≥8000times（25±2℃，0.5C，EOL≥80%）
Ac parameters (grid-connected）
Rated power	125kW
Voltage range on the power grid side	AC400V±（-20%~15%）
Rated current	181A
Rated grid frequency	50Hz/60Hz
Total current waveform distortion rate	＜3%（Rated power）
Power factor	-1～1（Adjustable）
System parameters
Weight	2900kg
Cabinet size	1050W1450D2100H
Maximum efficiency	≥90% (exchange side, 25 ± 2℃, 0.5C)
Air conditioning power	5kW (cooling), 2kW (heating)
Working environment temperature	Discharge: -20~50℃; Charging: 0~50℃
Working environment humidity	RH ≤ 95% (no condensation)
Protection grade	IP54
Anti-corrosion grade	C3
Cooling method	Intelligent liquid cooling
Noise	≤70dB
Altitude	≤2000m (for heights above this, the capacity will be reduced)
Fire protection	Aerosol
Communication	Ethernet, WIFI, 4G
Certification	IEC 62619 UN38.3；IEC 62477 IEC61000
